Flexicobre

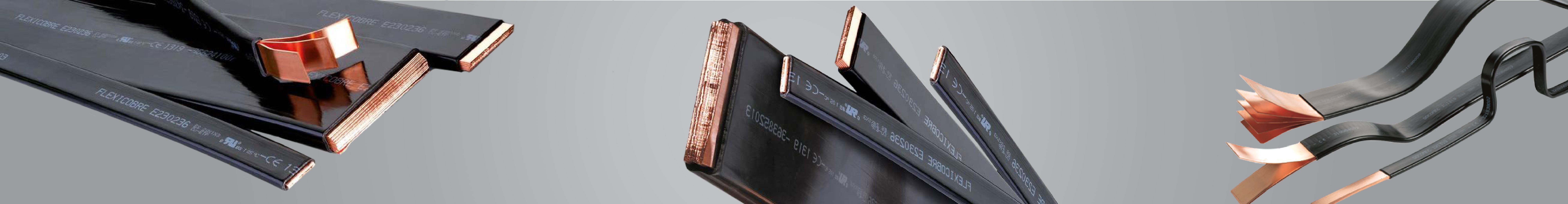

Las soleras flexibles están formadas por un ensamblaje de flejes (Cu-ETP) protegidas por una extrusión de PVC que las aísla de la humedad y las amenazas del medio ambiente.

Medidas: Desde 0,5x13x2 mm. hasta 1x100x12 mm.

Suministramos pletinas flexibles (Cu-ETP) de alta calidad siendo fieles a los estándares internacionales más relevantes. Las pletinas flexibles garantizan el aislamiento dieléctrico del producto a pesar de las deformaciones y condiciones de utilización de las barras, gracias a su protección de PVC extruido (de 9mm a 50mm).

Consulte las opciones en mm de espesor de PVC, espesor de láminas, número de láminas y longitud.

Opcional: Cobre estañado y aluminio, conexiones con elementos flexibles, aislante PVC sin halógeno y aislante PVC alta temperatura.

Campos de aplicación: El flexicobre se usa en conexiones eléctricas en tableros de distribución, paneles y electrodomésticos en el área de baja tensión. Con la intención de conectar el generador, el transformador, el inversor y el panel de control.

Información técnica

MEDIDA Ancho (mm) Espesor lámina (mm) Nº de láminas Sección (mm²) Intensidad admisible ΔT 50°C Intensidad máxima ΔT 65°C Pérdida de potencia ΔT 50°C Tc = 90°C Pv (W/m)
9x0,8x2 9 0.8 2 14.4 135 160 28.9
9x0,8x3 9
0.8
3 21.6 165 195
28.8
9x0,8x4 9 0.8 4 28.8 195 230 30.2
9x0,8x5 9 0.8 5 36 225 260 32.2
9x0,8x6 9 0.8 6 43.2 255 295 34.5
9x0,8x7 9 0.8 7 50.4 275 320 34.4
9x0,8x8 9 0.8 8 57.6 295 345 34.7
9x0,8x9 9 0.8 9 64.8 330 385 38.9
9x0,8x10 9 0.8 10 72 340 395 36.9
13x0,5x2 13 0.5 2 13 140 160 34.6
13x0,5x3 13 0.5 3 19.5 170 195 34
13x0,5x4 13 0.5 4 26 200 230 35.3
13x0,5x5 13 0.5 5 32.5 225 260 35.8
13x0,5x6 13 0.5 6 39 250 285 36.8
13x0,5x7 13 0.5 7 45.5 270 315 36.8
13x0,5x8 13 0.5 8 52 290 335 37.2
13x0,5x9 13 0.5 9 58.5 310 360 37.8
13x0,5x10 13 0.5 10 65 330 385 38.6
15,5x0,8x2 15 0.8 2 24 200 230 59.3
15,5x0,8x3 15 0.8 3 36 250 290 61.8
15,5x0,8x4 15 0.8 4 48 295 340 64.6
15,5x0,8x5 15 0.8 5 60 330 385 65
15,5x0,8x6 15 0.8 6 72 375 430 69.7
15,5x0,8x7 15 0.8 7 84 400 465 68
15,5x0,8x8 15 0.8 8 96 430 500 68.8
15,5x0,8x9 15 0.8 9 108 460 535 70.1
15,5x0,8x10 15 0.8 10 120 510 590 77.6
20x1x2 20 1 2 40 280 320 45.3
20x1x3 20 1 3 60 345 400 45.9
20x1x4 20 1 4 80 410 470 48.7
20x1x5 20 1 5 100 465 535 50.3
20x1x6 20 1 6 120 515 595 51.5
20x1x7 20 1 7 140 545 630 49.5
20x1x8 20 1 8 160 585 685 50
20x1x9 20 1 9 180 625 730 50.8
20x1x10 20 1 10 200 705 810 58.3
24x1x2 24 1 2 48 325 375 51.1
24x1x3 24 1 3 72 400 465 51.7
24x1x4 24 1 4 96 470 545 53.6
24x1x5 24 1 5 120 535 615 55.7
24x1x6 24 1 6 144 590 680 56.6
24x1x7 24 1 7 168 620 720 53.7
24x1x8 24 1 8 192 700 810 60.1
24x1x9 24 1 9 216 720 870 56.6
24x1x10 24 1 10 240 800 925 63.1
32x1x2 32 1 2 64 410 475 61
32x1x3 32 1 3 96 510 585 63.6
32x1x4 32 1 4 128 595 685 65.1
32x1x5 32 1 5 160 670 775 66.2
32x1x6 32 1 6 192 740 855 67.5
32x1x7 32 1 7 224 780 895 64.5
32x1x8 32 1 8 256 870 1000 70.4
32x1x9 32 1 9 288 905 1025 67.9
32x1x10 32 1 10 320 985 1135 72.7
40x1x2 40 1 2 80 495 575 72.2
40x1x3 40 1 3 120 615 705 74.6
40x1x4 40 1 4 160 715 825 75.9
40x1x5 40 1 5 200 805 925 77.3
40x1x6 40 1 6 240 885 1020 78.1
40x1x7 40 1 7 280 940 1065 75.8
40x1x8 40 1 8 320 1040 1195 81.5
40x1x9 40 1 9 360 1080 1230 78.5
40x1x10 40 1 10 400 1160 1340 81.8
50x1x2 50 1 2 100 585 670 81.5
50x1x3 50 1 3 150 745 855 88.5
50x1x4 50 1 4 200 860 990 88.9
50x1x5 50 1 5 250 965 1110 89.9
50x1x6 50 1 6 300 1060 1220 90.9
50x1x7 50 1 7 350 1130 1285 88.9
50x1x8 50 1 8 400 1225 1410 91.9
50x1x9 50 1 9 450 1300 1475 92.4
50x1x10 50 1 10 500 1375 1585 93.5
63x1x2 63 1 2 126 715 815 97.08
63x1x3 63 1 3 189 905 1045 105.1
63x1x4 63 1 4 252 1045 1205 105.6
63x1x5 63 1 5 315 1165 1345 105.8
63x1x6 63 1 6 378 1275 1470 106.1
63x1x7 63 1 7 441 1375 1560 106.3
63x1x8 63 1 8 504 1465 1685 106.4
63x1x9 63 1 9 567 1580 1790 110.5
63x1x10 63 1 10 630 1630 1875 110.6
80x1x2 80 1 2 160 850 965 110.6
80x1x3 80 1 3 240 1115 1285 127.8
80x1x4 80 1 4 320 1280 1475 127.2
80x1x5 80 1 5 400 1425 1640 127.1
80x1x6 80 1 6 480 1550 1785 126.2
80x1x7 80 1 7 560 1690 1915 129.5
80x1x8 80 1 8 640 1775 2045 125.9
80x1x9 80 1 9 720 1930 2190 133.3
80x1x10 80 1 10 800 1960 2260 124.6
100x1x2 100 1 2 200 1075 1220 144.01
100x1x3 100 1 3 300 1320 1500 146.2
100x1x4 100 1 4 400 1550 1785 152.5
100x1x5 100 1 5 500 1720 1980 151.6
100x1x6 100 1 6 600 1870 2155 150.7
100x1x7 100 1 7 700 2045 2320 155.8
100x1x8 100 1 8 800 2110 2435 146.4
100x1x9 100 1 9 900 2200 2650 142.7
100x1x10 100 1 10 1000 2330 2690 145.3
