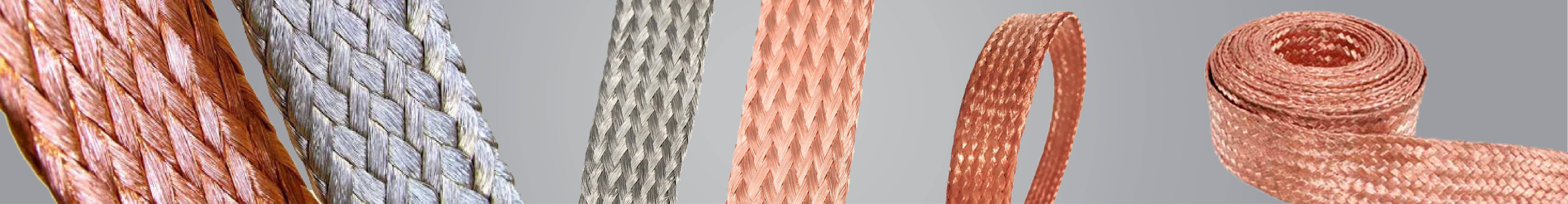

Soguilla Y Trencilla Flexible
Se recomienda el uso de trencilla flexible en instalaciones en las que la conexión eléctrica está sometida constantemente a fuertes vibraciones, ya que la trencilla logra absorber los impactos y así evitar la propagación de la misma.
Nuestra empresa pone a su disposición la cotización y orientación en el diseño de trencillas.
| Diámetro mm. +0.0/-0.2 | Calibre AWG Equivalente | Número de Alambres +/-2% | Diámetro de Alambres | Área Nom. mm2 | Peso Aprox. kg/km +/-12% | Capacidad Aprox. Amp/cm2 |
|---|---|---|---|---|---|---|
| 22 | 0.85 | 92 | Natual o Estañado Cal. 41 AWG 0.0028" = 0.071mm | 0.35 | 3.5 | 10.0 |
| 20 | 1.0 | 133 | 0.5 | 5.0 | 12.5 | |
| 17 | 1.6(1.5) | 273 | 1.1 | 10.0 | 18.0 | |
| 16 | 1.8(1.9) | 385 | 1.5 | 15.0 | 21.0 | |
| 14 | 2.1(2.2) | 525 | 2.0 | 20.0 | 24.0 | |
| 13 | 2.4 | 651 | 2.5 | 25.0 | 30.0 | |
| 11 | 3.1 | 1036 | 4.0 | 40.0 | 40.0 | |
| 10 | 3.6 | 1372 | 5.4 | 54.0 | 44.0 | |
| 8 | 4.0 | 1764 | 7.0 | 70.0 | 60.0 | |
| 8 | 4.3 | 2058 | 8.0 | 80.0 | 70.0 | |
| 7 | 4.8 | 2562 | 10.0 | 100.0 | 85.0 | |
| 7 | 5.2 | 2842 | 11.0 | 110.0 | 90.0 | |
| 5 | 6.1(6.5) | 4116 | 15.6 | 155.0 | 120.0 | |
| 3 | 7.5 | 6615 | 26.2 | 260.0 | 150.0 | |
| 14 | 2.1 | 168 | Natual o Estañado Cal. 36 AWG 0.005" = 0.127mm | 2.1 | 20.0 | 24.0 |
| 12 | 2.5 | 259 | 3.2 | 32.0 | 32.0 | |
| 10 | 3.3 | 413 | 5.2 | 52.0 | 44.0 | |
| 9 | 3.6 | 525 | 6.6 | 65.0 | 55.0 | |
| 8 | 4.2 | 665 | 8.4 | 83.0 | 70.0 | |
| 7 | 4.6 | 833 | 10.5 | 100.0 | 85.0 | |
| 6 | 4.9 | 1050 | 13.3 | 130.0 | 95.0 | |
| 3 | 7.0 | 1995 | 25.3 | 250.0 | 150.0 | |
| 2 | 9.1 | 2646 | 33.6 | 335.0 | 175.0 | |
| 2/0 | 12.5 | 5292 | 67.2 | 670.0 | 270.0 | |
| 13 | 2.1 | 77 | Natual o Estañado Cal. 32 AWG 0.008" = 0.203mm | 2.5 | 23.0 | 30.0 |
| 10 | 3.5 | 175 | 5.6 | 55.0 | 45.0 | |
| 7 | 4.3 | 308 | 10.0 | 100.0 | 85.0 | |
| 6 | 5.5 | 420 | 13.6 | 130.0 | 95.0 | |
| 5 | 6.0 | 567 | 18.3 | 180.0 | 120.0 | |
| 2/0 | 12.5 | 2058 | 66.6 | 660.0 | 270.0 |
